Vörunúmer: 7-STH-AAZ40000 3400

Bandsög ZIP 36 D.A. 400V 2450x27

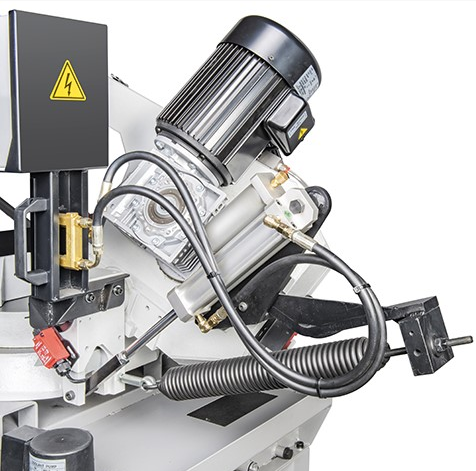

Auto pull down horizontal bandsaw for small to medium sized ferrous material.
The saw allows to make any cut without the constant presence of the operator through the original hydraulic control system for descent of the sawframe, at variable speed rate according to the material to cut.

Nánar á heimasíðu framleiðanda

Framleiðandi Thomas

Akureyri

Uppselt

Hafnarfjörður

Uppselt

Senda fyrirspurn

TECHNICAL FEATURES AND CUTTING CAPACITY
High level machining and finishing of the parts.
Cast-iron sawframe on twin tapered bearings and ring nut to provide greater stability and vibration free cutting.
Mechanical blade tension with handwheel.
Vice with quick lock lever.
Precision blade guide with tungsten carbide pads and adjustable rollers.
Anti-corrosion treatment with electrolytic nickel-plating and galvanization zinc plating ensure long lasting cutting precision.
Electric installation according CE regulations.
Set of fuses against current overload.
Motor protected thermal feeler. Safety microswitch on the blade protection.
Severe tests on mechanical tolerances, electric installation and final performance test.

STANDARD EQUIPMENT
Set of service spanners.
Bar stop rod with millimiter scale.
Material support.
Bi-metal sawband 2750x27x0,9.
Certificate of conformity and instruction manual according to Machine Directive 2006/42/CE.

ACCESSORIES
Rollerway on loading side 2 mt
Rollerway on unloading side 2 mt with bar stop
